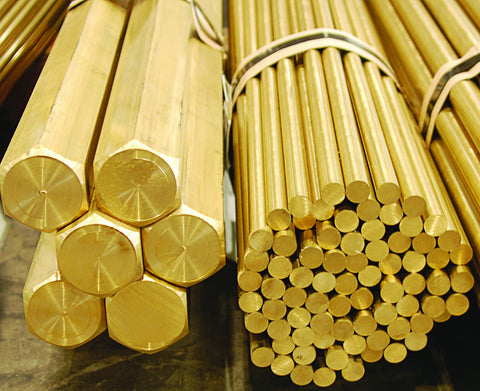

Shapes Available

C69300 Lead Free Brass

As of January 4, 2014, the Safe Drinking Water Act (SDWA) requires drinking water products sold or installed for use in public water systems, as well as plumbing in facilities, to meet a weighted average of not more than 0.25 percent lead. The states of California (AB1953), Vermont (S152), Maryland and Louisiana have already instituted these requirements for products currently in the market.

C693 Lead-Free Brass has excellent dezincification corrosion resistance and excellent stress corrosion cracking resistance. One if its unique features is that it is corrosion resistant to chemicals found in water and gas. It has high strength equivalent to stainless steel. It also has good machinability, excellent hot forgeability, easily accepts solder and brazing, and has excellent polishing and plating capabilities. C69300 Lead-Free Brass is compliant with the Federal Drinking Water Act, and it also support applications following the U.S. EPA standards for antimicrobial performance.

Common Applications of C69300 Brass:


  • Stop Valves
  • PEX fittings
  • Ball valves
  • Commercial and Residential water faucet parts


  • Fluid Connectors
  • Sensor Bodies
  • Thermostat Parts


  • Automatic Screw Machine Parts
  • Bolts
  • Condenser Tube Plate
  • Nuts
  • Pneumatic Fittings
  • Pump Parts
  • Screw Machine Products
  • Valve Stems
  • Valve Bodies for Water

Cu Si P Pb Fe Sn Ni Mn Zn
Min/Max 73.0
2.7 0.04
0.10% 0.20% 0.10% 0.10% Remainder
Nominals 77.0%
3.4% 0.15%
max max max
Form Temper Code Tensile Strengh (Ksi) YS-0.2% Offset YS-0.5% Ext
Elongation (%) Rockwell B scale

Fatigue Strength**

Section Size

Cold Work

Rod H02
88 Typ
49 Typ 50 Typ 10 Typ
90 Min
23 Typ
Rod H02 87 Typ 49 Typ 50 Typ 10 Min 85 Typ 1.5 4
H02 103 Typ

5 Min 215 Typ .10 15
H02 114 Typ 74 Typ 61 Typ 5 Min 95 Typ 0.25
H02 105 Typ 73 Typ 60 Typ 5 Min 97 Typ 0.5 13
H02 80 Typ 36 Typ 37 Typ 10 Min 80 Typ 2.0 2
M30 73 Typ 38 Typ 39 Typ 15 Min 77 Typ 2.0
M30 75 Typ 39 Typ 40 Typ 15 Min 79 Typ 1.5

* Measured at room temperature, 68F

** Fatigue Strenght: 100 x 10

Product Property US Customary
Melting Point - Liquidus F 1616
Meling Point - Solidus F 1571
Density 0.3
Specific Gravity 8.3
Electrical Conductivity 8
Thermal Conductivity 21.8
Coefficient of Thermal Expansion 68-572 10-6 å¡F (68-572å¡F) 10.3
Specific Heat Capacity Btu/lb/å¡F at 68å¡F 10.4
Specific Heat Capacity Btu/Lb/F at 68 F
Modulus of Elasticity in Tension ksi
Joining Technique Suitability
Soldering Excellent
Brazing Good
Oxyacetylene Welding Good
Gas Shielded Arc Welding Good
Spot Weld Good
Seam Weld Good
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Excellent
Forgeability Rating 95
Machinability Rating 85
Form System Standard Description
Die Forging ASTM B283/B283M Copper and Copper Alloy Die Forgings (hot pressed)
ASTM B371/B371M
Copper-zinc-silicon Alloy Rod
Rod, Bar & Shapes ASTM B124/B124M
Copper And Copper-alloy Forging Rod, Bar, And Shapes
