C52400 Phosphor Bronze "10% D"
Request a Quote

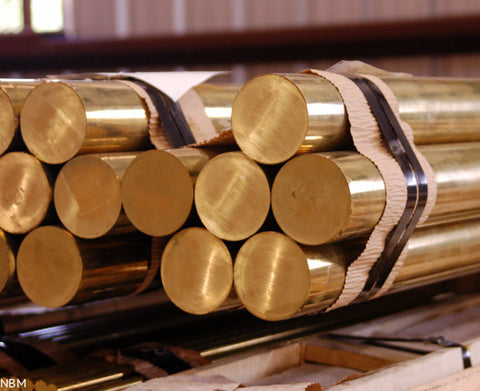

Shapes Available

C52400 Phosphor Bronze "10% D"

ASTM B139, QQ-B750, SAE J461

Typical Uses for C52400 Phosphor Bronze "10% D":

INDUSTRIAL: Heavy Bars and Plates, Fittings, Expansion Plates for Bridges

Cu Fe Pb P Sn Zn
Min/Max Rem 0.1 0.05 0.03 - 0.35 9.0 - 11.0 0.2
Nominals 90.0000 - - - 10.0000 -
Product Type Temper Type
Bar ASTM B139, B103
Plate ASTM B103
Rod ASTM B139, SAE J463, J461
Rod, Welding AWS A5.13
Shapes ASTM B139
Sheet ASTM B103
Strip ASTM B103, SAE J463, J461
Wire ASTM B159
Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL
YS
0.02% Offset
YS
0.005% Offset
Elong. RH
B
RH
C
RH
F
RH
30T
VH
500
BH
500
BH
3000
Shear
Strgth
Fatigue
Strgth
Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
H02 0.04 68 83 - - - - - - - - - - - - -
H02 1 0 TYP 20 572 - - - 32 92 - - - - - - - - 0
H06 0.04 68 115 - - - - - - - - - - - - -
H06 1 0 TYP 20 793 - - - 7 100 - - - - - - - - 0
OS035 0.04 68 66 28 - - - - - - - - - - - -
OS035 1 0 TYP 20 455 193 - - 68 55 - - - - - - - - 0
H04 0.04 68 100 - - - - - - - - - - - - -
H04 1 0 TYP 20 689 - - - 13 97 - - - - - - - - 0
H08 0.04 68 122 - - - - - - - - - - - - -
H08 1 0 TYP 20 841 - - - 4 101 - - - - - - - - 0
H10 0.04 68 128 - - - - - - - - - - - - -
H10 1 0 TYP 20 883 - - - 3 103 - - - - - - - - 0
WIRE
OS035 0.08 68 66 - - - - - - - - - - - - -
OS035 2 0 TYP 20 455 - - - 70 - - - - - - - - - 0
H04 0.08 68 147 - - - - - - - - - - - - -
H04 2 0 TYP 20 1014 - - - - - - - - - - - - - 0
H02 0.08 68 118 - - - - - - - - - - - - -
H02 2 0 TYP 20 814 - - - - - - - - - - - - - 0
H01 0.08 68 93 - - - - - - - - - - - - -
H01 2 0 TYP 20 641 - - - - - - - - - - - - - 0
Product Property US Customary Metric
Coefficient of Thermal Expansion 10.2 . 10-6 per oF (68-572 F) 18.4 . 10 6? per å¡C (20-300 C)
Density 0.317 lb/in3 @ 68 F 8.77 gm/cm3 @ 20 C
Electrical Conductivity 11 %IACS @ 68 F 0.064 MegaSiemens/cm @ 20 C
Electrical Resistivity 94.3 ohms-cmil/ft @ 68 F 15.68 microhm-cm @ 20 C
Melting Point Liquid US 1830 F 999 C
Melting Point Solid US 1550 F 843 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulas of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.78 8.78
Specific Heat Capacity 0.09 Btu/lb/å¡F @ 68 F 377.1 J/kg . å¡K at 293 K
Thermal Conductivity 29.0 Btu . ft/(hr . ft2 . å¡F) @ 68 F 50.2 W/m . å¡K at 20 C
Joining Technique Suitability
Brazing Excellent
Butt Weld Excellent
Capacity for Being Cold Worked Good
Capacity for Being Hot Formed Poor
Coated Metal Arc Welding Fair
Gas Sheilded Arc Welding Good
Machinability rating 20
Oxyacetylene Welding Fair
Seam Weld Fair
Soldering Excellent
Spot Weld Good
End Product Specification
Bar ASTM B139, B103
Plate ASTM B103
Rod ASTM B139, SAE J463, J461
Rod, Welding AWS A5.13
Shapes ASTM B139
Sheet ASTM B103
Strip ASTM B103, SAE J463, J461
Wire ASTM B159
