C27200 Yellow Brass "63.5%" (CDA 272)
Request a Quote

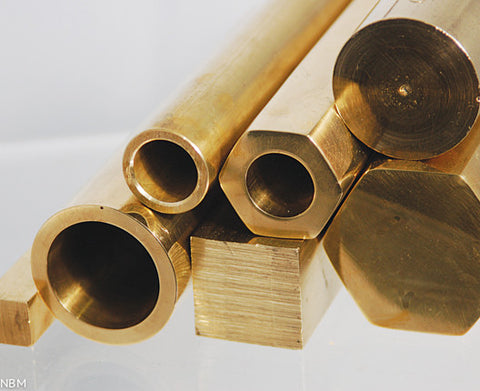

Shapes Available

C27200 Yellow Brass "63.5%" (CDA 272)

EN equivalentåÊisåÊCuZn37

Typical Uses

Fasteners: Fasteners, Fasteners

Industrial: Cold Headed Parts, Heat Exchanger Shells, Pump Cylinder Liners

Specifications

End Product Specification
Bar ASTM B36
Plate ASTM B36
Sheet ASTM B36
Strip ASTM B36
Tube ASTM B135

Request a Quote

Chemical Composition
Mechanical Properties
Physical Properties
Fabrication
Cu Fe Pb Zn
Min/Max 62.0 - 65.0 .07 .07 Rem
Nominals 63.5 - - 36.5
Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL
YS
0.02% Offset
YS
0.005% Offset
Elong. RH
B
RH
C
RH
F
RH
30T
VH
500
BH
500
BH
3000
Shear
Strgth
Fatigue
Strgth
Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
Tube
H80 0.065 0 TYP 68 74 55 - - 10 - - 80 - - - - - - 0.0
1.65 20 510 379 - - 10 - - 80 - - - - - - 0.0
OS025 0.065 0 TYP 68 56 23 - - 50 - - 82 - - - - - - 0.0
1.65 20 386 159 - - 50 - - 82 - - - - - - 0.0
Product Property US Customary Metric
Melting Point - Liquidus 1680 F 916 C
Density 0.305 lb/in3 at 68 F 8.44 gm/cm3 @ 20 C
Specific Gravity 8.440 8.44
Electrical Conductivity 27.60 %IACS @ 68 F 0.161 MegaSiemens/cm @ 20 C
Thermal Conductivity 67 Btu ̴ÌÁ ft/(hr ̴ÌÁ ft2̴ÌÁoF)at 68F 116.0 W/m ̴ÌÁ oK at 20 C
Coefficient of Thermal Expansion 11.40 ̴ÌÁ10-6 per oF (68-572 F) 20.5 ̴ÌÁ10-6 per oC (20-300 C)
Specific Heat Capacity 0.090 Btu/lb/oF at 68 F 377.1 J/kg ̴ÌÁ oK at 293 K
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa
No info Available ̴Ì_
