Copper Alloys 101: From Pure Copper to High-Performance Bronzes
Copper alloys are among the most widely specified material families in industrial manufacturing. With over a hundred commercially available grades, the spectrum ranges from high-purity unalloyed copper to complex multi-element bronzes engineered for extreme service conditions.
Understanding the compositional and performance distinctions between these grades is essential for accurate material specification in sectors such as aerospace, marine engineering, oil and gas, and power distribution.
This article covers the key categories, their defining characteristics, and the application criteria that inform alloy selection.
Unalloyed (Pure) Copper: Grades and Distinctions
Pure copper grades are selected primarily for their electrical and thermal conductivity, which exceeds that of nearly all other commercial metals. However, differences in refining methods and residual element content create meaningful distinctions between grades.
ETP Copper (C11000) is the most widely specified commercial copper grade. Classified as Electrolytic Tough Pitch, it contains approximately 99.9% copper with a controlled oxygen content of roughly 0.04%. This residual oxygen is a byproduct of the refining process and does not significantly impair conductivity, which remains at or above 100% IACS (International Annealed Copper Standard). C11000 is standard for electrical bus bars, power conductors, roofing sheet, and general-purpose conductive components.
Oxygen-free copper grades are refined to eliminate residual oxygen and other volatile impurities. The primary grade in this category is C10100 (OFE, Oxygen-Free Electronic), which achieves 99.99% minimum copper purity. The absence of oxygen prevents outgassing under vacuum and at elevated temperatures, a critical requirement in semiconductor fabrication, high-vacuum systems, superconductor assemblies, and aerospace electronics. C10100 also exhibits superior ductility and formability compared to ETP copper, which can be a factor in cryogenic or high-flex applications.
The Role of Alloying Elements
While unalloyed copper excels in conductivity, its relatively low tensile strength (approximately 26–38 ksi in the annealed condition for C11000), limited wear resistance, and susceptibility to certain forms of corrosion restrict its use in mechanically demanding environments. Alloying addresses these limitations.
The addition of elements such as tin, aluminum, silicon, nickel, manganese, or zinc modifies the copper matrix to improve specific properties: tensile and yield strength, hardness, fatigue life, corrosion resistance, or machinability. The trade-off is a reduction in electrical conductivity, which varies depending on the type and concentration of the alloying addition.
Alloy Selection Considerations
Effective material specification requires balancing multiple performance criteria against application demands. Key variables include operating temperature range, exposure to specific corrosive media (seawater, acids, industrial chemicals), mechanical load profiles (static vs. cyclic), electrical or thermal conductivity requirements, and manufacturing process compatibility (machinability, weldability, castability). A thorough review of applicable industry standards (ASTM, SAE, AMS, MIL-SPEC) should inform every specification decision.
Partnering with a supplier that maintains a broad alloy inventory and has metallurgical expertise on staff can significantly reduce lead times and mitigate the risk of incorrect material selection.
Alloy Inventory and Product Forms
Material availability in the correct form factor is often as critical as alloy selection itself. Project timelines can be significantly impacted when a specified grade is available in bar stock but not in the required sheet or tubular form. Aviva Metals addresses this challenge by maintaining one of the largest and most diversified copper alloy inventories in North America, with more than 5,000 metric tons across over 100 grades.
Stock is held across a comprehensive range of product forms, each suited to specific copper alloy applications:
- Bar stock (solid and hollow rounds, hexagons, squares, and rectangles): The most commonly specified form for machined copper alloy components such as bearings, bushings, valve seats, and wear rings. Available in continuous cast and wrought grades across the full range of bronzes, brasses, and unalloyed coppers, including C11000 and C10100.

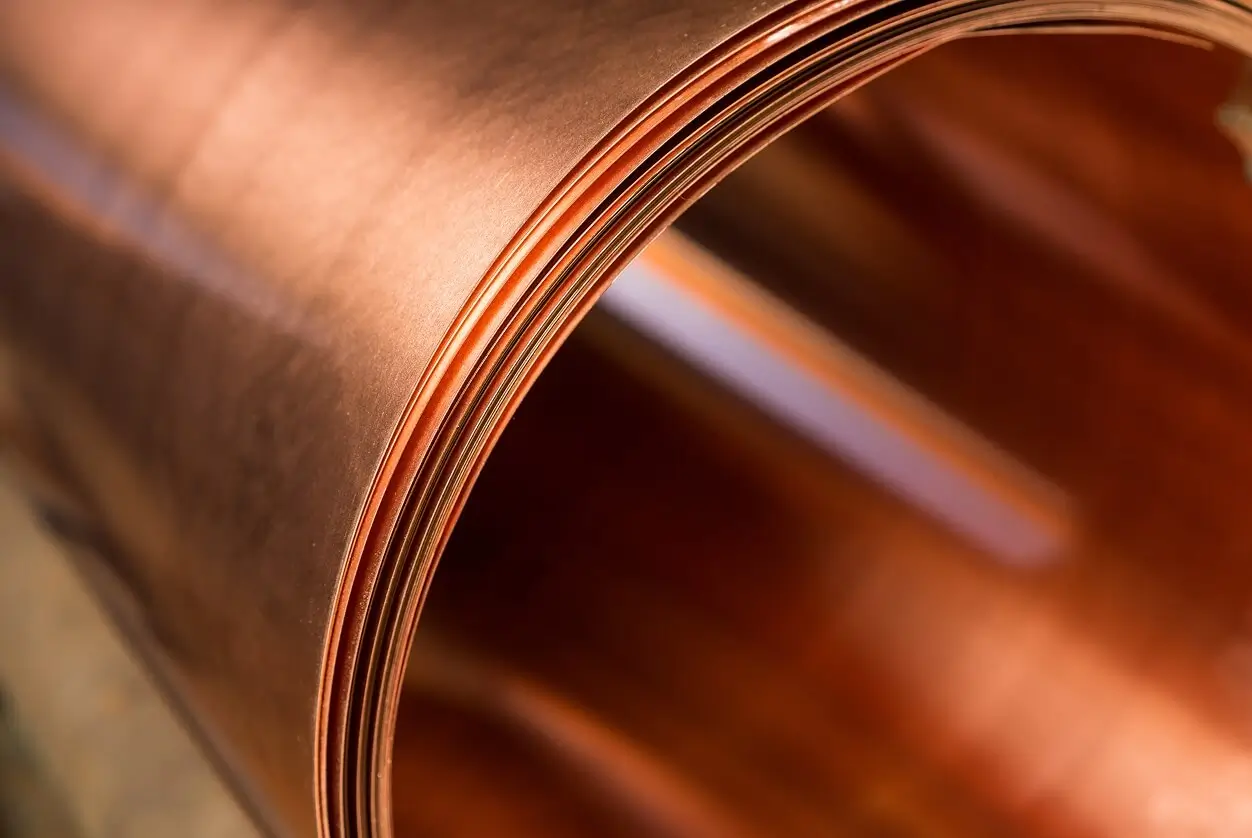

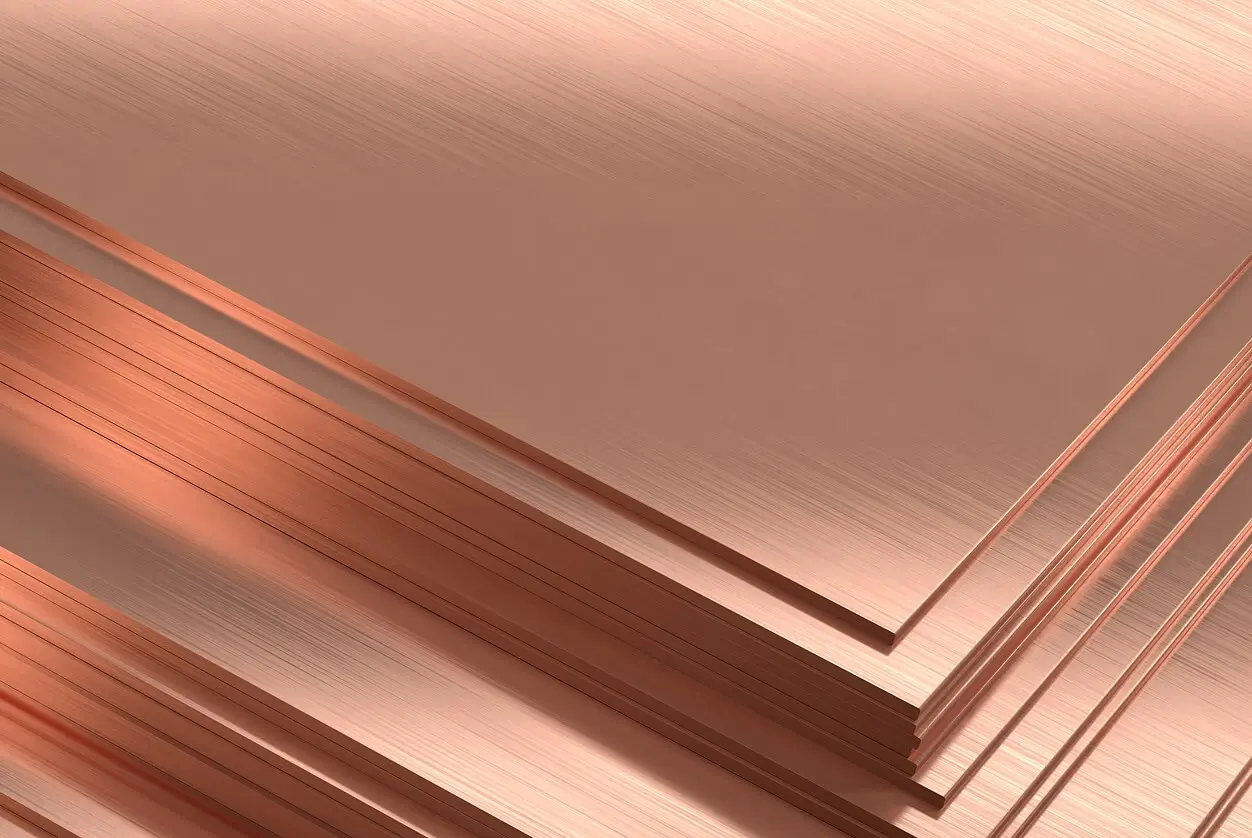

- Sheet and plate (standard and custom thicknesses): Used extensively in heat exchanger tubesheet fabrication, marine wear plates, electrical bus systems, and corrosion-resistant lining applications. Grades range from high-conductivity ETP copper to heavy-duty aluminum bronze and silicon bronze plate.

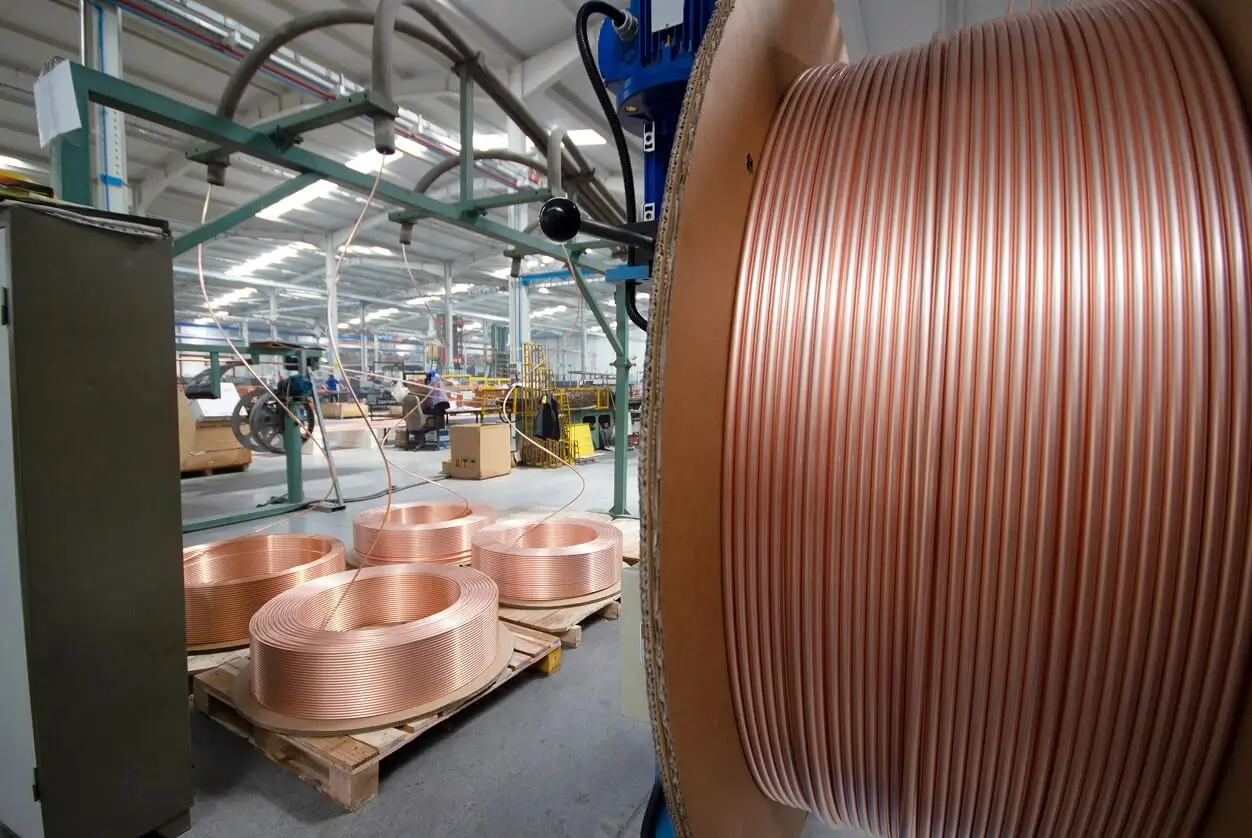

- Tube (seamless and welded, broad OD and wall combinations): Critical for heat transfer systems, hydraulic lines, and condenser applications where copper alloys are selected for their thermal conductivity and resistance to saltwater and chemical attack.
- Wire (various tempers and diameters): Specified for electrical conductors, resistance welding electrodes, spring components, and fastener manufacturing. Available in oxygen-free copper grades for high-purity applications as well as phosphor bronze and beryllium copper for spring and connector uses.
Forgings and custom continuous cast shapes are also available for applications requiring non-standard cross-sections or enhanced directional mechanical properties.
This inventory depth means that whether a project calls for C11000 ETP copper bar or C17200 beryllium copper wire, material can typically ship from stock rather than requiring a mill lead time.
Aviva Metals: Technical Expertise and Inventory Depth
Aviva Metals is the leading U.S. manufacturer and master distributor of brass, bronze, and specialty copper alloys. With over 100 grades in stock totaling more than 5,000 metric tons, a state-of-the-art continuous cast foundry in Lorain, Ohio, and precision CNC machining capabilities, Aviva Metals supports critical applications across aerospace (AS9100D/AS9120B certified), marine, oil and gas, and industrial manufacturing.
Contact Aviva Metals today to discuss your material requirements and specifications.
Frequently Asked Questions About Copper Alloys
Wrought alloys are mechanically formed into shape through processes like rolling, extruding, or drawing. Cast alloys, on the other hand, are produced by pouring molten metal into a mold. Cast alloys generally allow for more complex shapes and larger cross-sections, while wrought products tend to offer tighter dimensional tolerances and a finer grain structure. Your choice between the two often depends on part geometry, required mechanical properties, and production volume.
Yes, though weldability varies significantly by grade. Silicon bronzes are among the easiest to weld, while some aluminum bronzes and high-tin phosphor bronzes require more specialized techniques, such as preheating or the use of matching filler metals. It's important to consult material specifications and your supplier before planning any welding operations, as improper technique can compromise corrosion resistance or mechanical integrity.
